Geviert

A page is a constraint, not a canvas. Swiss grid systems compiled into executable rules — so that layouts can be counted, scored, sampled, and re-rolled.

0 runtime dependencies 92 tests MIT Gerstner 1964 · Müller‑Brockmann 1981

01  The demonstration

This is not a picture of a book.

It is a book, composed a moment ago, inside your browser. A grid was built from the size of the box below, the paragraphs were broken into lines by Knuth and Plass's 1981 algorithm, the plates were fitted into the fields the text left empty, and every baseline was laid on the lattice. Select a sentence: it is live text. Press new grid, and it is composed again from nothing.

Live text on a baseline grid. Worst measured deviation: 0.012 px. Plates: Dutch florals, Melissa Wiederrecht

02  The argument

Instead of solutions for problems, programmes for solutions.

That is Gerstner, in 1964, and it is the whole API. You do not author a layout. You author the constraints a layout must satisfy — and the library enumerates the ones that do, scores them by rules taken from the books, and lets a seed choose. The same seed returns the same page, forever.

Every typesetting engine can set a beautiful line. TeX has done it since 1981, and this library borrows its algorithm without apology. What no typesetter does is treat the grid as the primitive: a picture is three fields tall, never one hundred and thirty‑eight points; a caption lives in the row gutter; a column of text is a run of free field rows.

There is no way to express an off‑grid position.

Which sounds like a cage and turns out to be a door. Because the set of legal pages is finite, layout stops being a matter of nudging boxes and becomes a search. The rules decide which pages are permitted. Taste — a small object of named weights — decides which permitted page is good.

This is generative art's proposition, applied to the page: not a template filled in, but a space of correct outcomes, sampled. The grid is not an afterthought bolted onto a typesetter. Here the grid is the point.

03  The canon, as code

Every rule cites its page.

The books were read cover to cover and encoded as assertions; the test suite reproduces the books' own dimensioned grids. When the library and the book disagree, the book is right. A sample:

The ruleSource
No half lines in typography: every vertical distance is whole linesMB 58–59
Field height is a whole number of text lines; gutters are empty linesMB 64, 134
The narrower the column, the smaller the typefaceMB 57
Seven to ten words a line; 8–12 pt for the text of booksMB 18, 30–31
Cross‑size register: every style's line height meets one moduleMB 59, 66
A picture's width matches the width of a column of textMB 63
The band under a captioned picture grows in whole body linesMB 64
Captions belong in the caption column, beside their pictureMB 63, 87, 120
The margin column sits at the outer edge, and mirrorsMB 55
Few graded picture sizes; one picture may dominateMB 11, 70
The type area floats high: mass may not sinkMB 51
Lines may be set flush right and left — but never the lastMB 80
The mobile grid: one unit count, many simultaneous divisionsGerstner 58–61
The morphological box: the parameter space, enumeratedGerstner 59

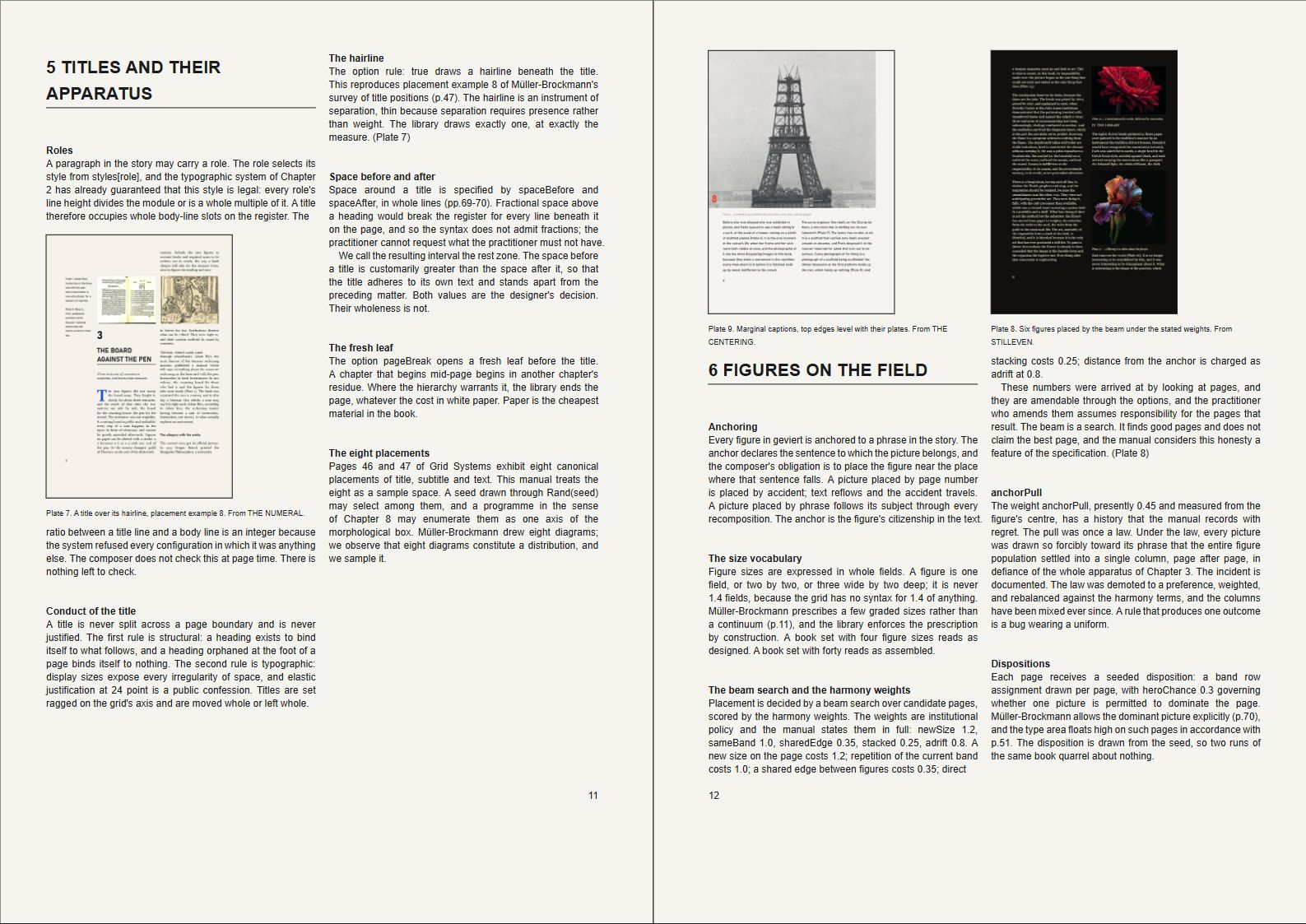

04  Books it has made

Real books, composed by the library, printed to PDF.

Nobody laid these pages out. Each is a story, a set of anchored figures, a grid, a type system, and a seed — passed to one function, which returned pages.

A page of STILLEVEN: a Dutch floral plate above two columns of essay text.

Stilleven

An essay on the Dutch flower piece, twenty plates, dark ground. The drop caps, the marginal captions, the widow control — all derived.

PDF ↓
A landscape spread of the same essay in a grotesque face on a light ground.

Stilleven, edition B

The same words and the same pictures, a different grid and a different face. One argument, two typographies, no hand-work between them.

PDF ↓
A page of THE CENTERING, set in a grotesque with a marginal caption column.

The Centering

All‑DIN, marginal caption column, signal numerals, a measured title. Bleeds, duotone plates, full‑page plates.

PDF ↓
A square page from THE MARGIN with a pull quote and rotated marginal text.

The Margin

A square book, made to exercise the difficult things: pull quotes in grid fields, rotated marginal text, justified setting, dropped initials.

PDF ↓

05  The shape of it

Give it words, pictures, a grid, and a seed.

// A programme: the constraints a page must satisfy.
const pages = composeDocument({
  grid:   ({ side }) => grid({ page: A4, margins, columns: 4,
                              line: body.lineHeight, rows: 8, side }),
  styles: typeSystem({ module: 24, roles: { display, body, caption } }).roles,
  story:  paragraphs,              // text, headings, dropped initials
  figures: plates,                 // anchored: "(Plate 3)" in the prose
  textSpan: 2,                     // a text column spans 2 grid columns
  bodyAlign: 'justify',          // grid-aware Knuth–Plass
  seed:   'a-seed',               // same seed, same book, forever
}).pages;

renderDOM(pages[0], el);           // live text on the baseline grid
renderPage(pages[0]);              // or SVG, or PDF
